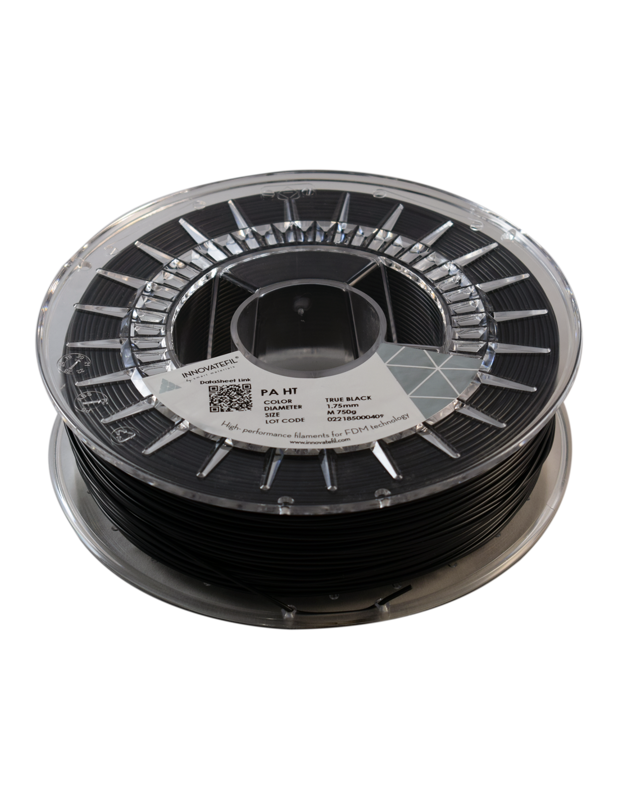

Innovatefil PA HT is a 3D string based on high mechanical resistance and toughness, which retains its excellent properties also at high temperatures. It is especially advisable to use this filament industrial application and for components that will have final use, such as bearings or gears.
properties:
- easy printing
- temperature resistance at permanent exposure up to up to 120 ° C
- tensile strength up to 85 MPa
- high mechanical resistance and toughness
-
- good resistance to humidity absorption (& lt; 0.3% 23-24h). If you do not use the product, it is advisable to prevent moisture from accessing. Therefore, we recommend inserting a coil with a filament into a closable packaging or box along with Drying bags or dehumidification device pingi dry . PA HT has a 75% lower water absorption than Nylon PA 6!
- is suitable for dual printing with support materials-can be combined eg with PVA, Support or Innovatefil Hydrosoluble.
Specifications:
- Diameter: 1.75 mm (± 0.03)
-working temperature: 255-280 ° C
° c :
Maximum working temperature - Long -term exposure: 120 ° C
Maximum temperature - short -term exposure: 160 ° C
Pack size: M 750g
BR />
Tips and Recommendations for Print :
Innovatefil® PA HT is supplied in a vacuum container, which ensures perfect moisture protection. Before closing into the packaging, the fiber is subjected to the strictest quality control by dehumidifying the raw material, where the humidity is less than 0.02%.
After unpacking, we recommend keeping it in dry and dark environments. Otherwise, the material can absorb part of the air humidity, which will then evaporate during the extrusion, which can cause the bad surface of the tunted pieces.
For optimal printing conditions, you can dry the material before use in the 3D printer fiber.
- Keep extruder in good condition
Once the print is completed, it is advisable to clean the nozzle. If you print from multiple types of material, it is advisable to consider changing the nozzle for each material to avoid mixing it.
For cleaning the extruder, we recommend using a cleaning string Smartfil Clean .
