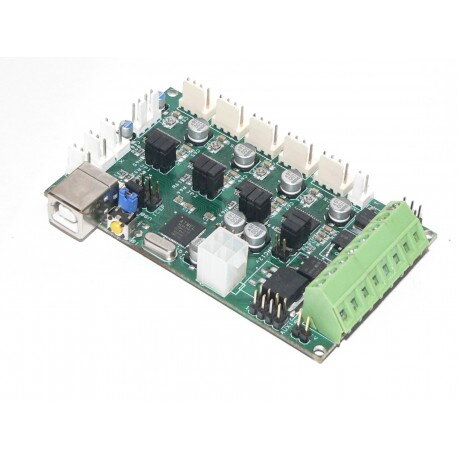

Minitronics v1.1

Minitronics is a powerful ATMEGA1281 processor, 128 kB memory and 16MHz. It can be connected to the computer using a conventional USB cable. Minitronics is compatible and easy to program with Arduino.

Another prominent feature of the board includes small design, quality components and four MOSFETS, 3 regular and one MOSFET on a heated bed (10A).

Additional features:

• USB 2.0
• Automatic reset can be disabled by removing the jumper
• The board can be powered from 12V (12 V MAX) through the
bridge
• 12 is a diode for protection against reversal
• 5V line is protected by a return fuse 500mA
• four -layer high -quality PCB board

Board dimensions:

• Width: 94 mm
• length: 57 mm
• height: 18 mm

Warning:
The product may require professional assembly, not a functional total.
